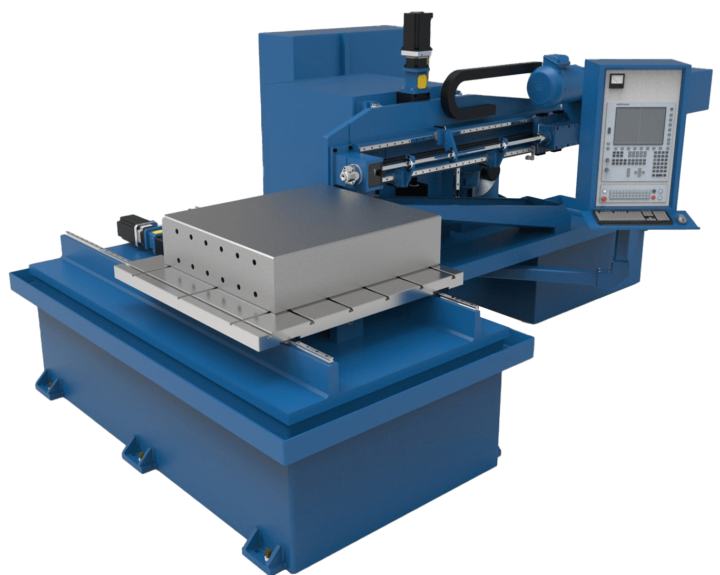

The TechniDrill Multi-Axis line of machines offer CNC-controlled multi-axis gundrilling capability for complex hole patterns – such as those seen in heat exchangers, manifolds and molds. The 0.75-inch and 1.25-inch (19.1 and 31.8 mm) capacity machines are offered with a “knee” fixture table to provide the X- and Y-axis movement.

The 2-inch (50.8 mm) capacity machine has a traveling column to provide the X- and Y-axis movement, plus a rotary fixture table and an auxiliary CAT 40 spindle for milling/tapping.

Each TechniDrill Multi-Axis machine includes a robust coolant system and a Microsoft Windows®-based controls package with CNC G-Code programming capability. Multiple fixturing options are available.

TechniDrill

The TechniDrill Advantage:

  • Unmatched versatility

    A heavy-duty machine base with linear guideway construction creates a cost-effective machine with extreme versatility and efficiency.

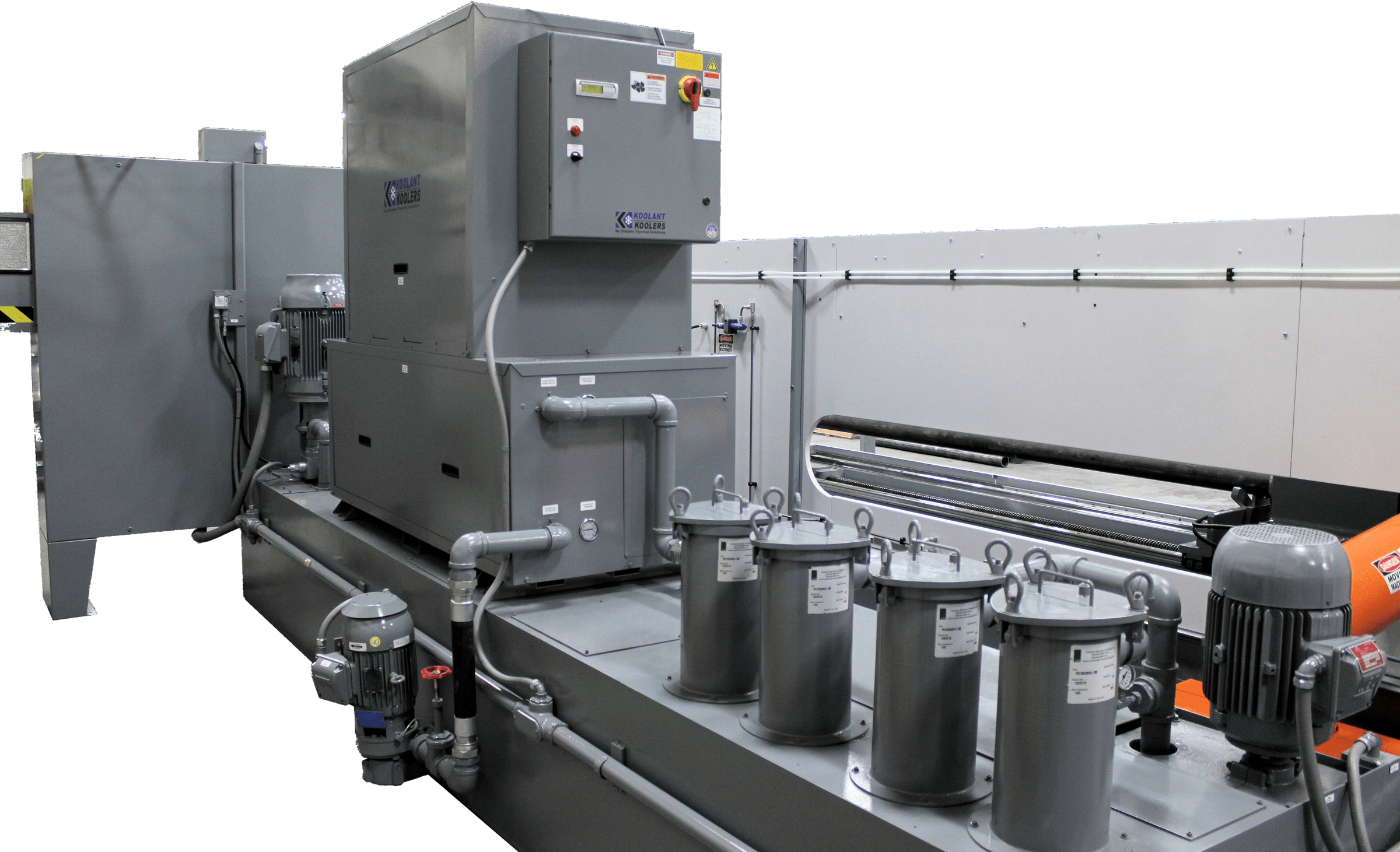

  • Robust coolant system

    High-pressure coolant system is suitable for either oil or water-soluble coolants up to 2,500 psi (172 bar) or 160 gpm (606 L/min).

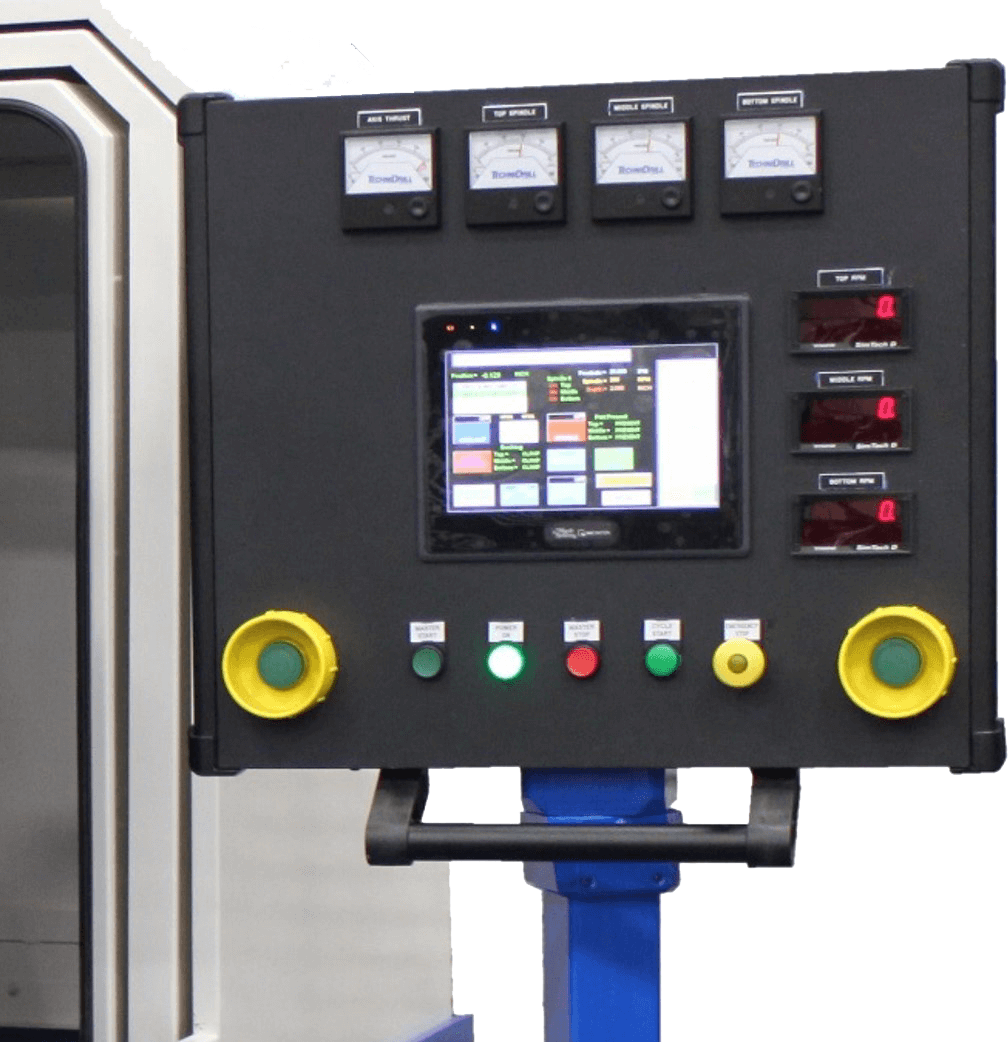

  • PC-Based machine controls

    Embedded PC-based control system features Microsoft Windows OS and a full-color touchscreen display.

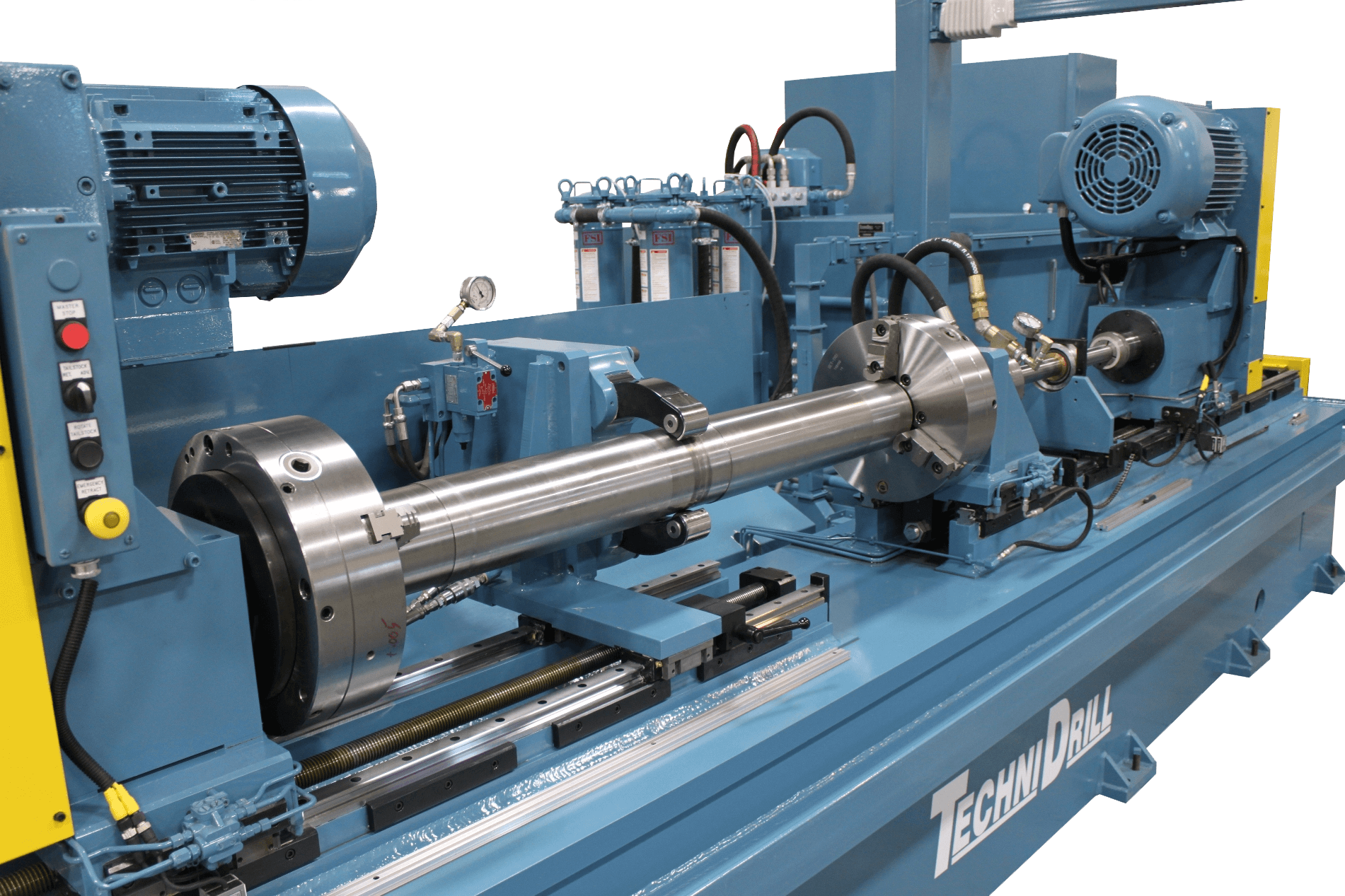

  • Versatile workpiece handling

    Custom fixturing and automated part loading options available.

75-48 CNC Knee Specifications

Drill Capacity0.75 in (19.1mm)
Slide TravelZ = 48 in (1219 mm)
Table TravelX = 24 in (610 mm)
Y = 16 in (406 mm)
No. of Spindles1
Spindle Power3 hp (2.2 kW)
Spindle RPM2,000 – 8,000
Feed Rate0.1 – 24 in/min (2.5 – 610 mm/min)
Coolant Flow10 gpm (37.9 L/min)
Coolant Pressure1,500 psi (103 bar)

125-48 CNC Knee Specifications

Drill Capacity1.25 in (31.8 mm)
Slide TravelZ = 48 in (1219 mm)
Table TravelX = 24 in (610 mm)
Y = 16 in (406 mm)
Table Size48 in wide x 32 in deep (1219 x 813 mm)
No. of Spindles1
Spindle Power10 hp (7.5 kW)
Spindle RPM500 – 8,000
Feed Rate0.1 – 24 in/min (2.5 – 610 mm/min)
Coolant Flow20 gpm (75.7 L/min)
Coolant Pressure1,500 psi (103 bar)

200-96 TC Specifications

Drill Capacity2 in (50.8 mm)
Slide TravelZ = 96 in (2438 mm)
Column TravelX = 84 in (2134 mm)
Y = 48 in (1219 mm)
No. of Spindles(1) gundrilling spindle
(1) CAT40 auxiliary spindle
Spindle Power25 hp (18.6 kW)
Spindle RPM500 – 4,500
Feed Rate0.1 – 24 in/min (2.5 – 610 mm/min)
Coolant Flow60 gpm (227 L/min)
Coolant Pressure1,500 psi (103 bar)
