1 inch drilling capacity

With a drilling capacity of 1 inch (25.4 mm), the DeHoff 10 Series is designed to perform in high-volume production environments.

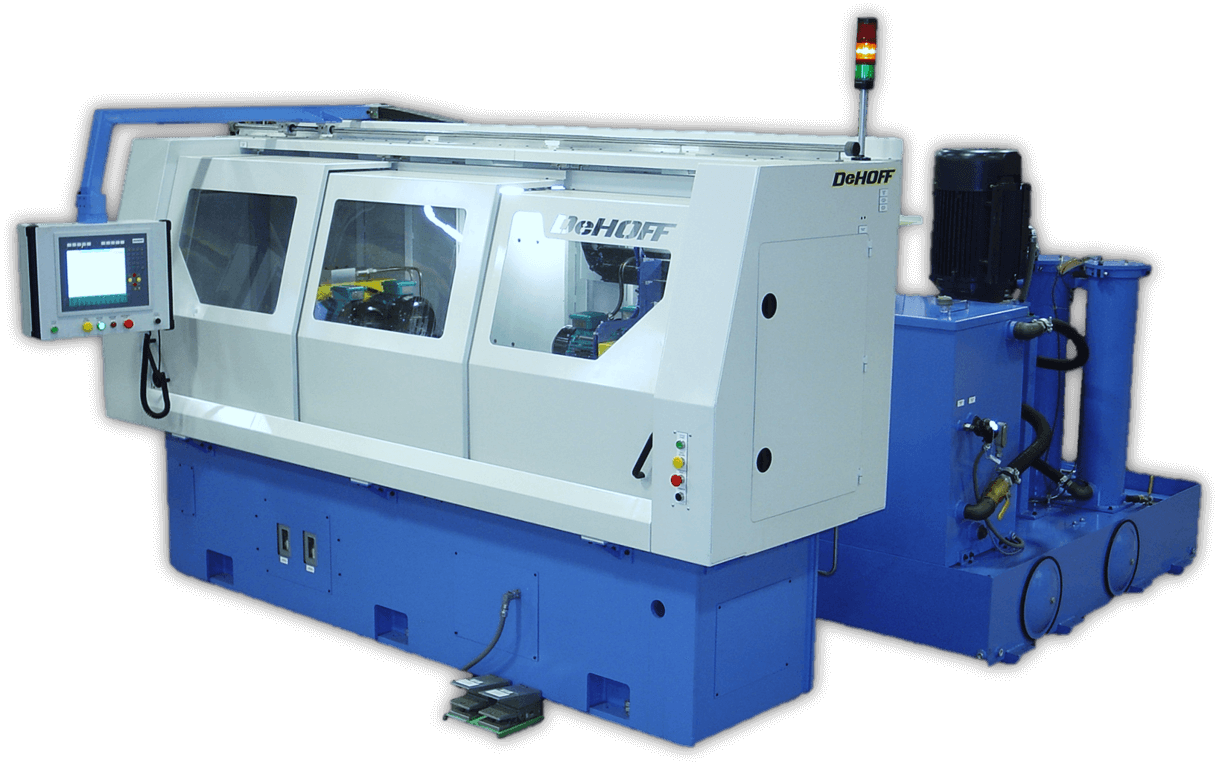

DeHoff 10 series

The DeHoff 10 series features a durable, heavy-duty design and multiple slide lengths and spindle configuration options.

DeHoff machine

Each machine includes our robust coolant system and a Microsoft Windows®-based controls package. Various fixturing options and workpiece counter rotation are also available.

DeHoff

The DeHoff Advantage:

  • Dehoff Unmatched performance

    Unmatched performance

    Hardened and ground steel box ways with hand-scraped saddle, gibs, and straps provide long-term drilling accuracy and reliability.

  • DeHoff Coolant System

    Robust coolant system

    High-pressure coolant system is suitable for either oil or water-soluble coolants up to 2,500 psi (172 bar) or 160 gpm (606 L/min).

  • DeHoff PC control

    PC-Based machine controls

    Embedded PC-based control system features Microsoft Windows OS and a 12-inch (305 mm) color display.

  • DeHoff Workpiece Handling

    Versatile workpiece handling

    Custom fixturing and automated part loading options available.

Specifications

Drill Capacity1 inch (25.4 mm)
Slide Travel36 in (914 mm) or
60 in (1524 mm) or
84 in (2134 mm)
No. of Spindles1 or 2
Spindle Power5 hp (3.7kW)
Spindle RPM200 – 8,000
Feed Rate0.1 – 30 in/min (2.5 – 762 mm/min)
Coolant Flow45 gpm (170 L/min)
Coolant Pressure1,800 psi (124 bar)
